Description

tf-reflect uses position matrix indices and texture matrix indices as vertex attributes. This makes it possible to render a soft object with reflection mapping. The demo shows a metallic coil as an example.

Coverage

Functions	Parameters	Description
`GXLoadPosMtxIndx`	Matrix	Model view matrix for each node.
`GXLoadPosMtxIndx`	Matrix output destination	`GX_PNMTX0`, `GX_PNMTX1`
`GXLoadTexMtxIndx`	Matrix	Texture matrix to transform normal vector for each node.
	Matrix output destination	`GX_TEXMTX0`, `GX_TEXMTX1`
	Matrix type	`GX_MTX2x4`
`GXSetVtxDesc`	Attribute ID	`GX_PNMTXIDX`, `GX_TEX0MTXIDX`
`GXSetVtxDesc`	Attribute comparison method	`GX_DIRECT`
`GXMatrixIndex1u8`	Index.	`GX_PNMTX0`, `GX_PNMTX1` `GX_TEXMTX0`, `GX_TEXMTX1`
`GXSetTexCoordGen`	Texture coordinate ID	`GX_TEXCOORD0.`
	Matrix type	`GX_TG_MTX2x4`
	Attribute source to use for texture generation.	`GX_TG_NRM`
	Matrix input source.	`GX_TEXMTX0`, `GX_TEXMTX1`

Using the Demo

START exits the test. The A and B Buttons change camera zoom. The Control Stick rotates the coil. The L and R Buttons transform the model.

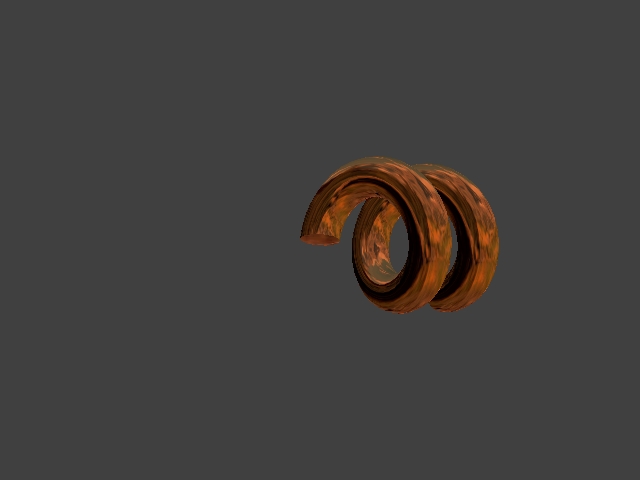

Snapshot

Required Data Files

$REVOLUTION_SDK_ROOT/dvddata/gxTests/tf-02.tpl

Revision History

2006/03/01 Initial version.
