pix-z-comp

Description

This program shows the Z compare function on PE. The TV screen is divided into four subscreens. Each subscreen can show a different Z compare method.

Coverage

Z compare function and Z precision.

Functions	Parameters	Description
`GXSetZMode`	compare_enable	`GX_TRUE` ( = `GX_ENABLE`)
	func	Can be changed interactively.
	update_enable	`GX_TRUE` ( = `GX_ENABLE`)

Using the Demo

The A button toggles the list and magnify modes.
The X/Y button changes the Z scale.
In catalog mode, the Control stick moves the cursor to select the subscreen.
In zoom in mode, the Control stick moves the cursor to change Z compare settings.
PAUSE exits the test.

Snap Shots

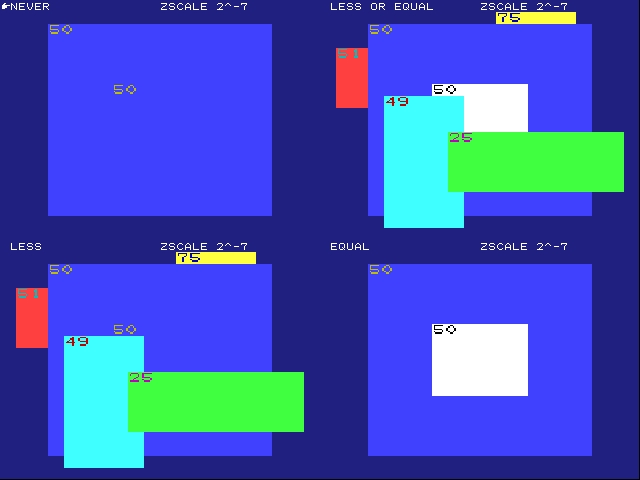

Z comparison modes of NEVER, LESS, LESS OR EQUAL and EQUAL.

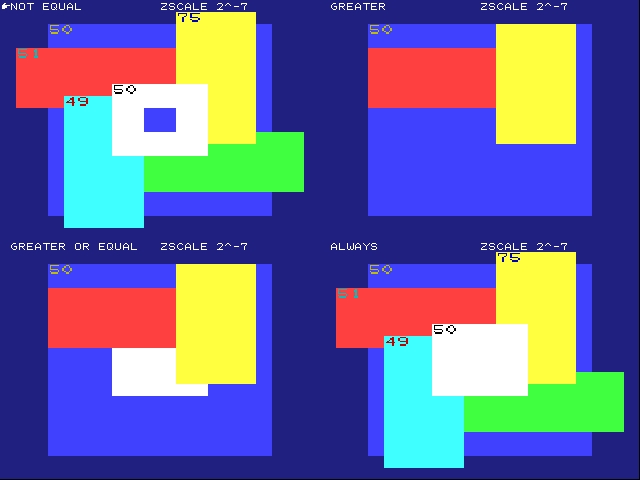

Z comparison modes of NOT EQUAL, GREATER OR EQUAL, GREATER, and ALWAYS.

Required Data Files

None.

Revision History

2006/03/01 Initial version.
