G2D-test

Description

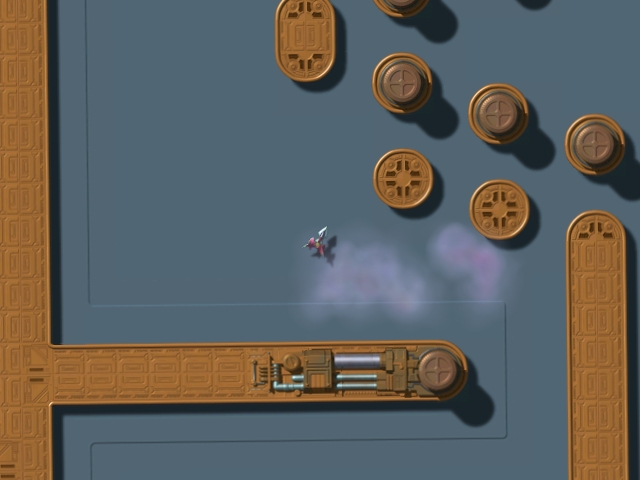

This sample game demo uses the G2D library. This game demo demonstrates the following:

How layers can comprise tiles of different materials.
How to design tiles so that the viewport can be rotated without creating artificial aliasing.
How to compose and separately scroll multiple layers.

For details about this library, refer to the 2D Graphics Library (G2D) in the Revolution Graphics Programmer's Guide.

Functions	Parameters	Description
`G2DinitSprite`	sprite	Pointer to the `G2DSprite` structure.
`G2DDrawSprite`	sprite	Pointer to the `G2DSprite` structure.
`G2DDrawSprite`	po	Pointer to the `G2DPosOri` structure to which the position and orientation of the sprite have been passed.
`G2DDrawLayer`	*`layer`*	Pointer to the `G2DLayer` structure.
`G2DDrawLayer`	*`aSortBuffer`*	Pointer to work buffer.
`G2DSetCamera`	po	Pointer to the `G2DPosOri` structure to which the position and orientation of the camera have been passed.
`G2DInitWorld`	*`nWorldX`*	Width of world space in pixels.
`G2DInitWorld`	*`nWorldY`*	Height of world space in pixels.
`G2DSetViewport`	*`nLeft`*	The left side of the screen space coordinates for viewport.
	*`nTop`*	The upper side of the screen space coordinates for viewport.
	*`nWidth`*	Width of viewport in screen space coordinates.
	*`nHeight`*	Height of viewport in screen space coordinates.
`GXPosition2f32`	*`X, Z`*	x- and z-coordinates of vertex (used by `G2D.c` rather than the sample demo).

The following is a summary of the control methods:


Requires g2d-00.tpl from the $REVOLUTION_SDK_ROOT/dvddata/gxTests directory.

2006/03/01 Initial version.
