tg-project

Description

A tg-project tests every detail of the texture projection. The user can change all parameters in this sample interactively.

Coverage

Functions	Parameters	Description
GXLoadTexMtxImm	Matrices	Appropriate projection matrix.
	Matrix destination.	GX_TEXMTX0
	Types	GX_MTX3x4
GXSetTexCoordGen	Destination coordinates.	GX_TEXCOORD0.
	Generation type.	GX_TG_MTX3x4
	Generation source.	GX_TG_POS
	Matrix source.	GX_TEXMTX0

Operation Method

The Menu button exits the test.

The X Button toggles control mode.

Camera Control

The Main stick moves camera with trackball-style control.
The Y Button zooms the camera in.
The A Button zooms the camera out.

Light Position Control

The Main stick moves light with trackball-style control.
The Y Button zooms light in.
The A Button zooms light out.

Light Parameter Control

The Main stick up scales the light's field of view down.
Main stick down scales the light's field of view up.

Model Select Control

The B Button changes the model.

Texture Select Control

The B Button switches the texture that is projected.

Snapshot

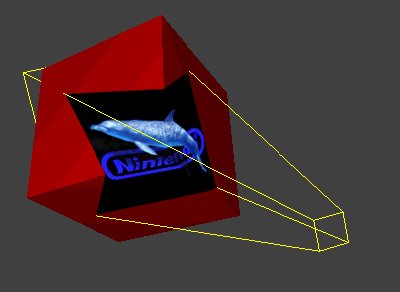

Texture projection onto a cube.


Texture projection onto a dodecahedron.


Texture projection onto a cylinder.

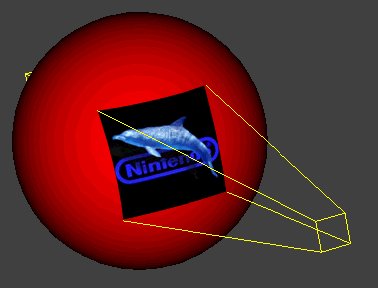

Texture is projection onto a sphere.


Texture projection onto an octahedron.


Texture projection onto an icosahedron.


Texture projection onto an torus.


Data Files Required

$REVOLUTION_SDK_ROOT/dvddata/gxTests/tg-01.tpl

Revision History

03/01/2006 Initial version.
