pix-sub

Description

This program shows an easy shadow volume method, which is one of the best examples of subtract mode pixel operation. It stores stencil values for shadow volume algorithm on the alpha plane and uses subtractive operation for those values.

Coverage

Subtract pixel operation.

Functions	Parameters	Description
`GXSetBlendMode`	`type`	GX_BM_NONE, GX_BM_BLEND, GX_BM_SUBTRACT
	`src_factor`	GX_BL_ONE, GX_BL_ZERO.
	`dst_factor`	GX_BL_ONE, GX_BL_ZERO, GX_BL_SRCCLR.
	*`op`*	GX_LO_NOOP (does not affect).

Operation Method

The A button toggles the animation ON/OFF.
The main stick moves the camera position.
PAUSE exits the test.

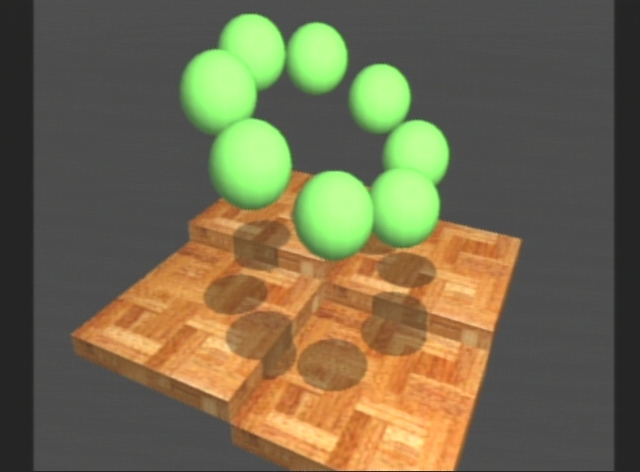

Snapshot

Required Data Files

$REVOLUTION_SDK_ROOT/dvddata/gxTextrs.tpl

Revision History

03/01/2006 Initial version.
