pix-logic

Description

This program shows the logic-op blend function on the PE. The TV screen is divided into four subscreens. Each can display a different logic-op blend method.

Coverage

Logic-op blend function.

Functions	Parameters	Description
`GXSetBlendMode`	`type`	GX_BM_LOGIC
	`src_factor`	GX_BL_ONE (Ignored).
	`dst_factor`	GX_BL_ZERO (Ignored).
	*`op`*	Can be changed interactively.

Operation Method

The A Button toggles the catalog/zoom up mode.
The R Button toggles the animation ON/OFF.
In catalog mode, the Control Stick moves the cursor to select the subscreen.
In zoom up mode, the Control Stick moves the cursor to change the lsrc_factor and dst_factor settings.

START exits the test.

Snapshot

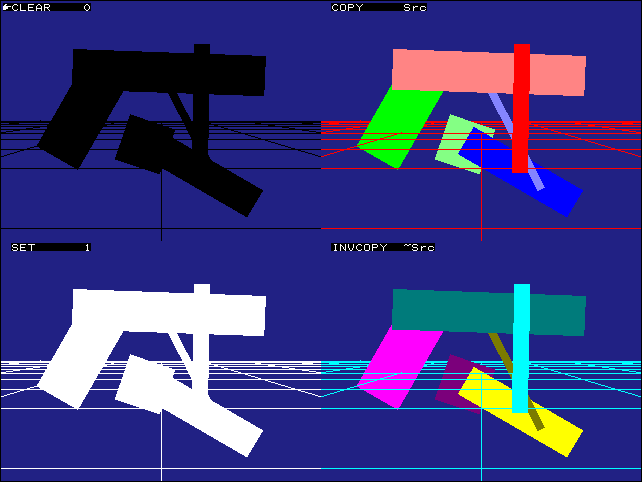

Logic operation modes of CLEAR, SET, COPY and INVCOPY.

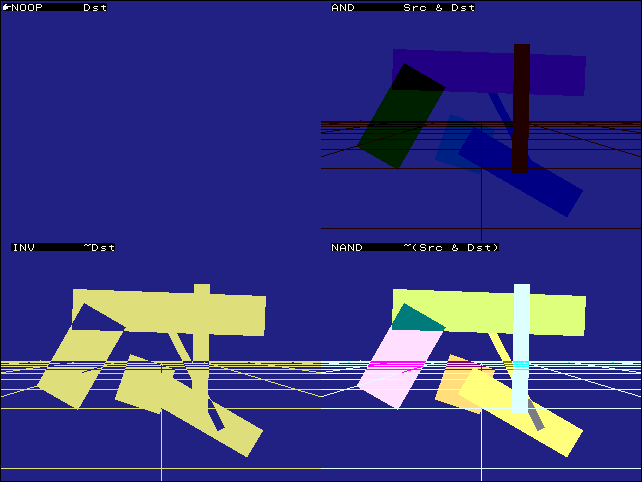

Logic operation modes of NOOP, INV, AND and NAND.

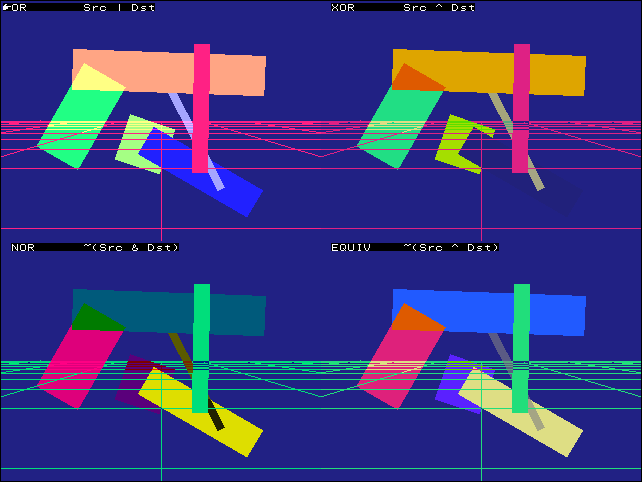

Logic operation modes of OR, NOR, XOR and EQUIV.


__SINGLEFRAME=4

Logic operation modes of REVAND, INVAND, REVOR and INVOR.


Required Data Files

None.

Revision History

03/01/2006 Initial version.
