SO API Introduction

Introduction

The SO Library is used to access the Internet from the Wii system. APIs to control connection to and disconnection from the Internet are provided, but no functionality is offered to control communications once connected. To do this, a higher-level library should be used.

The SO Library assumes the use of LAN (Ethernet) and Internet protocol 4 (IPv4) network environments. Environments using point-to-point protocol (PPP), PPP over Ethernet (PPPoE) and Internet protocol 6 (IPv6) are not currently supported.
In addition, the SO Library accesses LANs and the Internet using the Wii internal Wi-Fi module or the external Wii LAN adapter (Ethernet). Multiple network interfaces cannot be used simultaneously. Please read the NCD Library descriptions for more on choosing a network interface.

To use the APIs included in the SO library, link so[D].a.
Place the following header file in an include statement in the program's source code:

#include <revolution/so.h>

Overview

Reserved Prefixes

The following prefixes are reserved in the SO Library.
They include prefixes reserved for future functionality expansion.

Prefix	Description
ARP	Address Resolution Protocol
DHCP	Dynamic Host Configuration Protocol
DNS	Domain Name System
ICMP	Internet Control Message Protocol
IF	InterFace
IGMP	Internet Group Management Protocol
IP	Internet Protocol
IP6	Internet Protocol version 6
MLD	Multicast Listener Discovery ( IPv6 )
ND	Neighbor Discovery ( IPv6 )
PPPOE	Point-to-Point Protocol Over Ethernet
SO	SOcket
TCP	Transmission Control Protocol
UDP	User Datagram Protocol

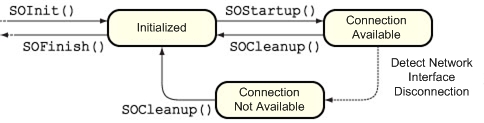

State Transition Diagram

The SO Library generally includes status monitoring for communication services performed by the system. Internal state transitions are as shown below:

Caution

• Because the SO Library communicates with the firmware, care is needed in the combination of the version of the linked so[D].a and that of the firmware within the application.

• Within the hardware, a working buffer within MEM2 is needed for the communication between the SO Library and the firmware. See the description of the SOLibraryConfig structure for more on the working buffer.
• Functions such as SOStartup[Ex] and SOCleanup may block for long periods of time before they finish processing. Consequently, we recommend that you prepare a thread for these functions separate from other processing such as rendering.

Revision History

2007/08/06 Added Caution.
2007/03/01 Corrected errors.
2007/01/31 Initial version.
