| Input Registers (12 registers) | |||
|---|---|---|---|
| Name | Registers | Number | Description |
| aPosition.xyz | - | 1 | Position information of vertex |
| aNormal.xyz | - | 1 | Normal vector information of vertex |
| aTangent.xyz | - | 1 | Tangent vector information of vertex |
| aColor | - | 1 | Color information of vertex (w is used together with the hemispherical light alpha) |
| aTexCoord0.xy | - | 1 | Texture coordinate information of vertex |
| aTexCoord1.xy | - | 1 | Texture coordinate information of vertex |
| aTexCoord2.xy | - | 1 | Texture coordinate information of vertex |
| aBoneIndex | - | 1 | Bone index number information of vertex |
| aBoneWeight | - | 1 | Vertex bone weight information |
| aUserAttribute? | - | 1 ～ 8 | User attribute information of vertex |
| <Needs Study> | - | ? | Vertex morphing delta attribute information |
| Constant Registers (96 registers) | |||
| Name | Registers | Number | Description |
| WrldMtx | c0 | 3 | World matrix |
| NormMtx | c3 | 3 | Normal matrix |
| PosOffs | c6 | 1 | Position offset for input registers |
| IrScale | c7 | 3 | Scale for input register |
| m00: Position , m01: Normal , m02: Tangent , m03: Color | |||
| m10: TexCoord0, m11: TexCoord1 , m12: TexCoord2 , m13: BoneWeight | |||
| m20: BoneIndex (always 1.0f), m21: Empty, m22: MatrixPalletCount, m23: InverseScale | |||
| TexcMap.xyz | c10 | 1 | Texture coordinate allocation |
| UvCoordinateMap(0.0～2.0), CameraSphereEnvMap(0.0), CameraCubeEnvMap(4.0), ProjectionMap(0.0) | |||
| x,y,z: Texture0, Texture1, Texture2 | |||
| Values 0 through 2 represent texture assignments, while 3 and 4 represent Cube and SphereMap, respectively. | |||
| TexMtx0 | c11 | 3 | Texture coordinate matrix 0 |
| TexMtx1 | c14 | 3 | Texture coordinate matrix 1 |
| TexMtx2 | c17 | 3 | Texture coordinate matrix 2 |
| TexTran | c19 | 1 | Texture translation (uses Tex0 and Tex1 sphere maps) |
| MatAmbi | c20 | 1 | Material ambient color ( w = VertexColorScale) |
| MatDiff | c21 | 1 | Material diffuse color |
| HslGCol | c22 | 1 | Ground color for hemispherical lighting |
| HslSCol | c23 | 1 | Space color for hemispherical lighting |
| HslSDir | c24 | 1 | Directional vector toward space for hemispherical lighting (w = LerpFactor) |

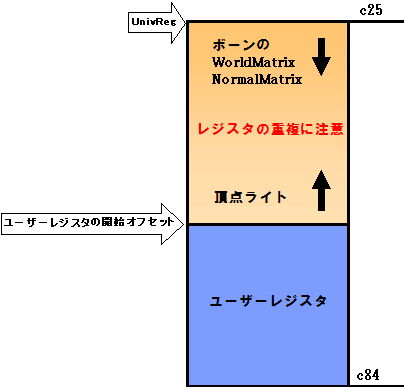

| UnivReg | c25 | 60 | Universal register (matrix palette, light settings) |
| bn = number of bones ln = number of vertex lights |
3 x bn | Position matrix | |
| 3 x bn | Normal matrix | ||
| 1 x ln | Light ambient color | ||
| 1 x ln | Light diffuse color | ||
| 1 x ln | Light position (w = IsDirectionalLight) | ||
| 1 x ln | Spotlight direction (w = IsSpotLightEnabled) | ||
| 1 x ln | Light distance attenuation parameters (x = K0, y = K1, z = K2, w = IsAttenuationDistanceEnabled) | ||
| 1 x ln | Light spot parameters (x = SpotExponent, y = SpotCutoffAngle) | ||
| - | c85 | 1 | Reserved |
| ProjMtx | c86 | 4 | Projection matrix |
| ViewMtx | c90 | 3 | (Model) View matrix |
| - | c93 | 3 | Constant value |
| Boolean Registers (16 registers) | |||
| Name | Registers | Number | Description |
| b0 | 1 | Reserved by DMP | |
| IsSmoSk | b1 | 1 | Skinning ON/OFF |
| IsRgdSk | b2 | 1 | Rigid skinning ON/OFF |
| IsUniSc | b3 | 1 | Even scale ON/OFF |
| UseNorM | b4 | 1 | Use normal matrix ON/OFF |
| IsHemiL | b5 | 1 | Hemispherical light ON/OFF |
| IsHemiO | b6 | 1 | Hemispherical light occlusion ON/OFF |
| IsVertA | b7 | 1 | Vertex color alpha ON/OFF |
| IsBoneW | b8 | 1 | Bone weight ON/OFF |
| UvMap0 | b9 | 1 | UV mapping ０ ON/OFF |
| UvMap1 | b10 | 1 | UV mapping １ ON/OFF |
| UvMap2 | b11 | 1 | UV mapping ２ ON/OFF |
| IsVertL | b12 | 1 | Vertex light ON/OFF |
| IsTex1 | b13 | 1 | Texture １ ON/OFF |
| IsTex2 | b14 | 1 | Texture ２ ON/OFF |
| IsQuate | b15 | 1 | Quaternion calculation ON/OFF |
| Integer Registers (4 registers) | |||
| Name | Registers | Number | Description |
| LightCt | i0 | 1 | Number of vertex lights (loop counter) |
| i1 | 1 | Reserved | |
| i2 | 1 | Reserved | |
| i3 | 1 | Reserved | |
